Passive Combiner

DHP-540

Vital Stats:

12 inputs
45-1000 MHz
High isolation
Front panel test point
Slim-line design

DHP-540
Passive Combiner Specifications

RF

Frequency Response	45-1000 MHz
Output Impedance	75 Ohm, F type female
Output Return Loss	> 16 dB
Input Impedance	75 Ohm, F type female
Input Return Loss	> 16 dB
Number of Inputs	12
Isolation	> 30 dB
Insertion loss	<17.5 dB +2 dB (45-860 MHz) <17.5 dB +3 dB (45-1000 MHz)

GENERAL

Size	Standard 19" Rack Mountable
Weight	2.4 lbs.

Specifications are subject to change without notice due to product improvements

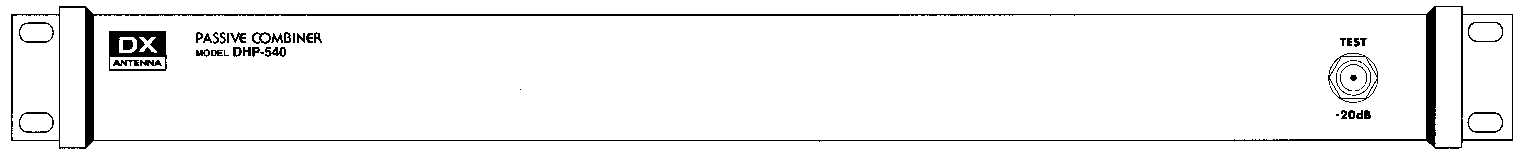

Front Panel Features

-20 dB test point

Back Panel Features

input connectors (12)
Output connector
